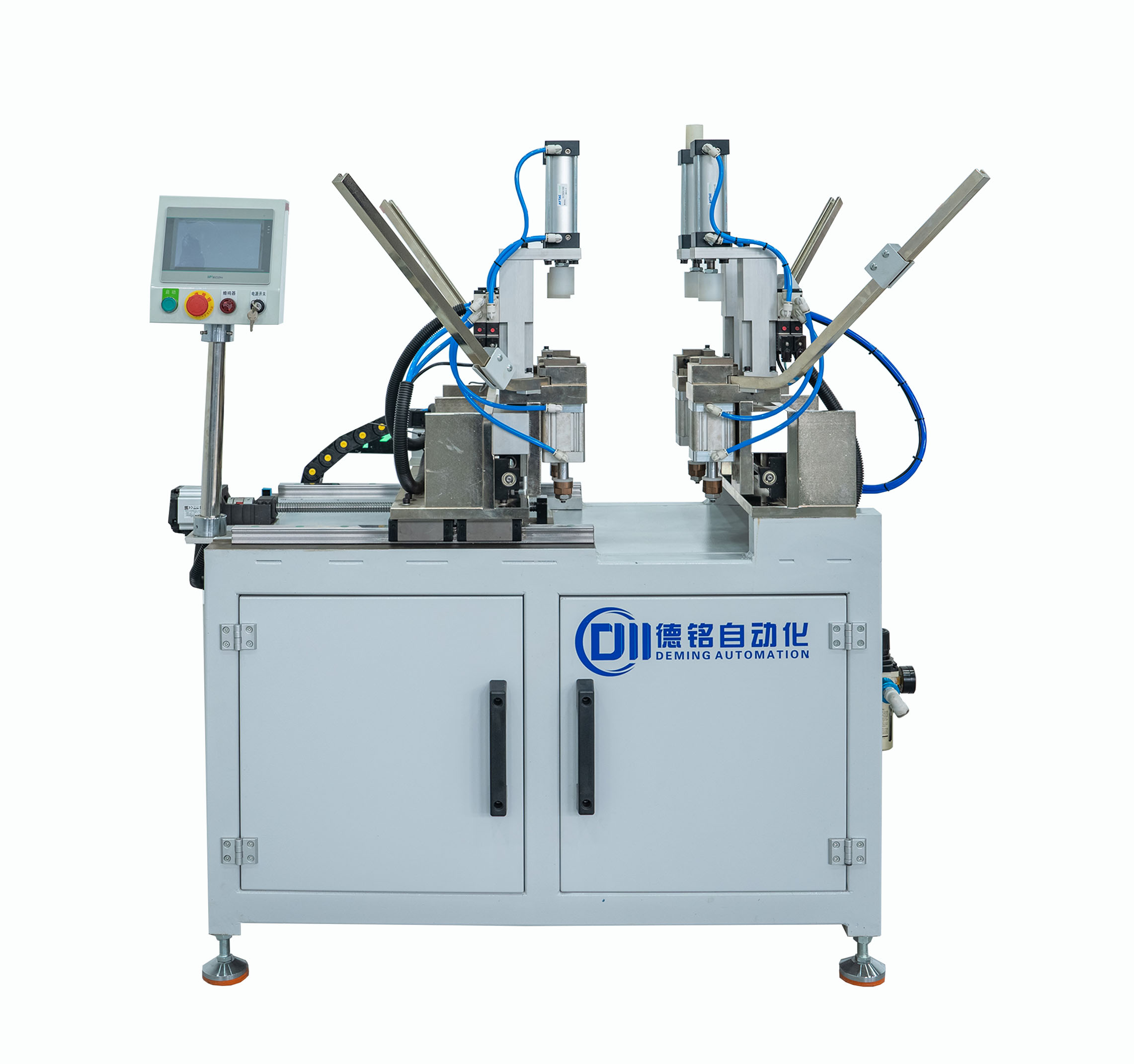

Automatic pre-glued photo frame nailing machine
Technical parameterModel:DMAP1015/DMAP70100Voltage:220V-380V 50-60HzNorminal power:5.5KWAir pressure:0.6-0.8MpaMaximum joining efficiency:15-20pcs/minMinimal frame joining inner size:DMAP1015(100mmX15
Technical parameter
| Model: | DMAP1015/DMAP70100 |
| Voltage: | 220V-380V 50-60Hz |
| Norminal power: | 5.5KW |
| Air pressure: | 0.6-0.8Mpa |
| Maximum joining efficiency: | 15-20pcs/min |
| Minimal frame joining inner size: | DMAP1015(100mmX150mm)/DMAP70100(280mmX280mm） |
| Maximum frame joining inner size: | DMAP1015(400mmX500mm)/DMAP70100(700mmX1000mm） |
| Total power: | 6KW |
| Machine size: | DMAP1015(4200mmX1700mmX1600mm);DMAP70100(5800mmX1700mmX1600mm) |
| Weight: | DMAP1015(980KG);DMAP70100(1300KG) |
Stability:
Perfect cutting accuracy can still be guaranteed after 2 years of use in the durability test.
Intelligent:
Upgraded traditional manual equipment and carried out new automated innovative design,the touch screen interface has good visibility and is easy to adjust the frame size.
High-precision:
The equipment adopts precision transmission, specially used for nailing high-hardness aluminum moldings, and can accurately nail at preset positions.
